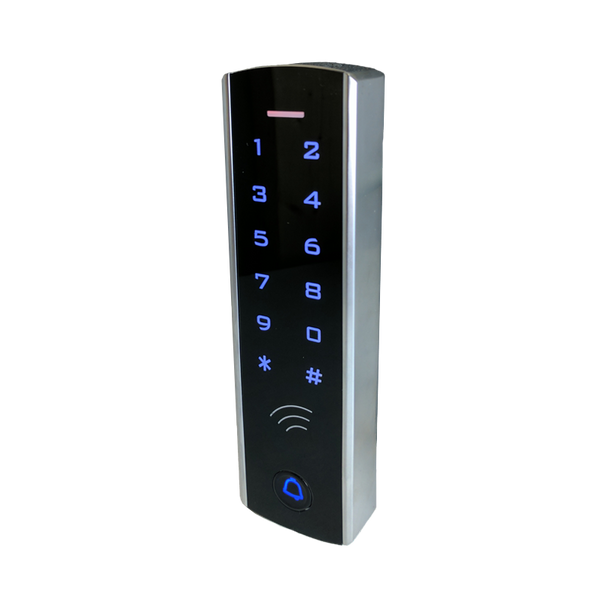

Standalone Access control touch slim Contrôle d'accès autonome tactile mince

Features:
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys
Wiegand 26 input for connection to external reader
Wiegand 26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
Built in buzzer
Red, Yellow and Green LEDS display the working status

Specifications
Operating Voltage DC 12V
User Capacity 2000,
Card Reading Distance 3-6 cm
Active Current <60mA
Idle Current 25 mA
Lock Output Load Max 3A
Alarm Output Load Max 20A
Operating Temperature 450-600
Operating Humidity 10%. 90% RH
Waterproof Conforms to 1P68
Adjustable Door Relay time 0-99 seconds
Adjustable Alarm Time. 0-3 minutes
Wiegand Interface Wiegand 26 bit
Wiring Connections Electric Lock, Exit Button, External Alarm, External reader
