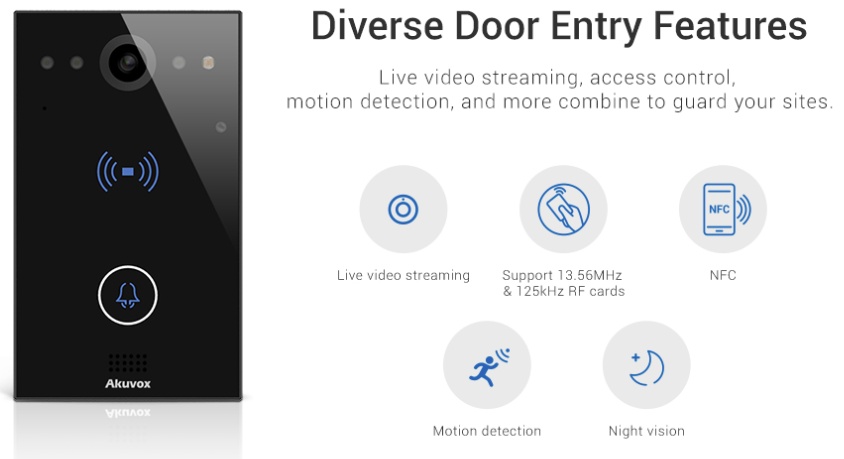

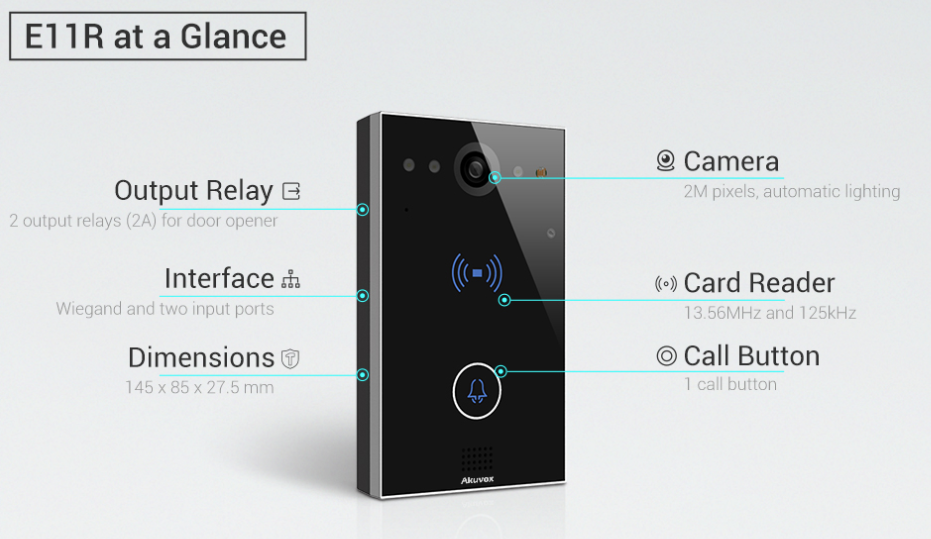

Akuvox E11 Palm-Size Cloud Intercom

Akuvox E11 a modern style, combining SIP technology with audio and video for use at home, villas, offices, warehouses

⚫ Wide-angle camera: 116º (H), 60º (V);

⚫ POE (IEEE802.3af, Power-over-Ethernet);

⚫ Two-way audio communication over IP networks with Echo Cancel feature;

⚫ Complies with SIP standard for easy integration in every SIP capable PBXes;

⚫ Complies with ONVIF standard for easy integration with any network surveillance system

⚫ Front panel: Plastic

⚫ Camera: 2M pixels, automatic lighting

⚫ Button: 1 call button

⚫ Light sensor: Support

⚫ Infrared sensor: Support

⚫ Wiegand port: Support

⚫ RF card reader: 13.56MHz & 125kHz

⚫ Relays out: 2

⚫ Inputs: 2

⚫ Microphone: -40dB

⚫ Speaker: 4Ω / 3W

⚫ Wide-angle camera: 116º (H), 60º (V);

⚫ PoE (IEEE802.3af, Power-over-Ethernet);

⚫ Two-way audio communication over IP networks with Echo Cancel feature;

⚫ Complies with SIP standard for easy integration in every SIP capable PBXes;

⚫ Complies with ONVIF standard for easy integration with any network surveillance system; Physical & Power

⚫ Ethernet port: RJ45, 10/100Mbps adaptive

⚫ 802.3af Power-over-Ethernet

⚫ 12V DC connector (if not using PoE)

⚫ Installation: Wall-mounted

⚫ Wall-mounted DIM: 145x85x27.5mm

⚫ Working Humidity: 10~90%

⚫ Working Temperature: -20°C ~ +65°C

⚫ Storage Temperature: -40°C ~ +70°C

⚫ SIP v1 (RFC2543), SIP v2 (RFC3261)

⚫ Narrowband audio codec: G.711a, G.711μ, G.729

⚫ Broadband audio codec: G.722

⚫ DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

⚫ Echo Cancellation

⚫ Voice Activation Detection

⚫ Comfort Noise Generator Video

⚫ Sensor: 1/2.7”, CMOS

⚫ Pixels: CIF, QCIF, VGA, 4CIF, 720p

⚫ Video codec: H.264

⚫ Video resolution: up to 1280x720p

⚫ Max. image transfer rate: 720p – 30fps

⚫ Viewing angle: 116°(H) / 60°(V)

⚫ High intensity IR LEDs for picture lighting during dark hours with internal light sensor

⚫ Compatible to 3rd -Party-Video components, e.g. NVRs Door Entry Feature

⚫ Relays controlled individually by DTMF tones

⚫ Camera permanently operational

⚫ Auto-night mode with LED illumination

⚫ White balance: auto

⚫ Minimum illumination: 0.1LUX Networking & Protocol

⚫ Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP Deployment & Maintenance ⚫ Auto-Provisioning ⚫ Web management portal

⚫ Web-based packet dump

⚫ Configuration backup / restore

⚫ Entry log export

⚫ Access table export / import

⚫ Firmware upgrade

⚫ System logs (include door access logs)
